General:
CSI Multi-Point
IIIb gasketing is a very thin mechanically
reinforced pressure seal. The basic EMI/RFI shielding material consists of a
densely woven aluminum wire screen with openings between wires filled with
either neoprene, or silicone elastomer.
Two thicknesses are available.
Recommended compression forces are greater than 50 PSI
|
Specifications: |
| |
|
Type of Elastomer
Silicone or Neoprene |
|
| |
.016" thk x 8.00"
wide |
X |
-- |
P/N
3251-0108 |
| |
.020" thk x 8.00"
wide |
X |
-- |
P/N
3251-0208 |
| |
.020" thk x 8.00"
wide |
-- |
X |
P/N 3351-0208
|
|
Material: |
| |
Aluminum
Wire: |
Alloy
5056/QQ-A-430 (AMS-4182) |
| |
Silicone: |
ZZ-R-765, Class 2, Grade 50 |
| |
Neoprene:
|
AMS-3222 |
|
Temperature Range: |
| |
Silicone: |
-80° to +500° F |
| |
Neoprene:
|
-40° to +212° F |
|
Shielding Effectiveness: |
| |
14 Khz |
(Magnetic field) |
35 db |
| |
1.0 Mhz |
(Magnetic field) |
40 db |
| |
18.0 Mhz |
(Electric field) |
100 db |
| |
1.0 Ghz |
(Plane Waves) |
60 db |
|
Applications: |
| |

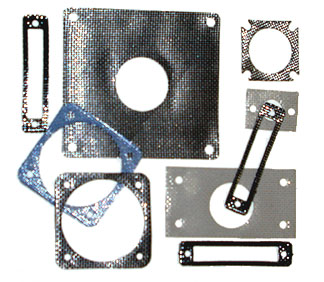

Custom-cut gaskets
and standard bulkhead connector gasket sizes
are available upon
request. |
