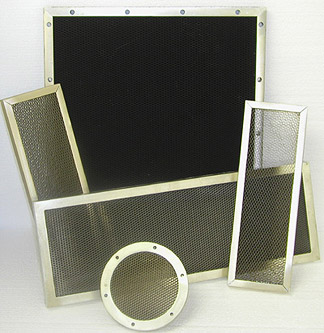

Multi-Point IXa Shielded Air Ventilation Panels

Air filter panels, with honeycomb design mounted in an extruded aluminum edge frame, electronically shields ventilation openings of equipment enclosures with minimum pressure drop.


CSI Multi-Point IXa Air Vent Panels are constructed using aluminum honeycomb mounted within a C-channel edge frame. The panels are supplied ready to mount on the shielded enclosure via a composite EMI/RFI shielding gasket attached to the panel frame. The panel edge frame has a mounting hole pattern for either through bolts or captive insert receptacles.

All panels made to customer specifications.


  Aluminum Honeycomb: 1/8" cell x 1/2" deep
  Aluminum Edge Frame: .060" C-shape 5/8" x 1/2"
  Gasket: Composite mesh and elastomer.

Typical Edge Construction:

Tin Plated Honeycomb Panels - Attenuation Characteristics:

  14 Khz H-Field 45db
  1 Mhz H-Field 80db
  1 Mhz E-Field 100db
  1 Ghz E-Field 90db
  5 Ghz Plane Wave 70db

Special Notes:

  1. Panels can be supplied with a chromate finish to MIL-C-5541.
  2. Optional finishes include painting, anodizing and tin plating.
  3. Honeycomb foil is perforated for maximum shielding effectiveness.
